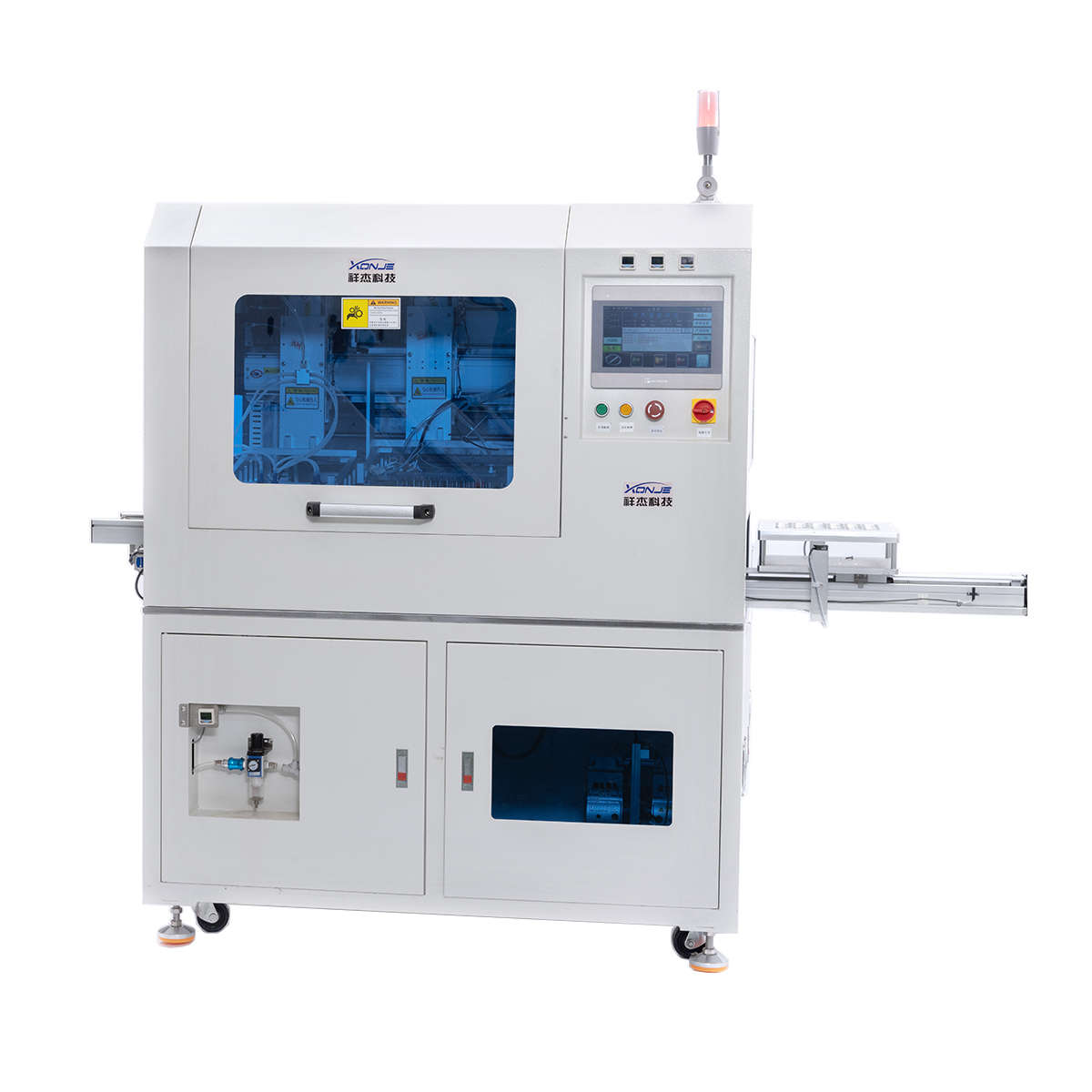

Features
1. Double platform stress-free cutting.
2. Precise positioning of MARK point.
3. Imported visual color high-definition industrial camera, automatic video.
4. Equipped with automatic tool changer.
5. Imported high-speed electric spindle.
6. Double-platform high-efficiency cutting.
7. Cooperate with other automation equipment to realize unmanned intelligent "PCBA circuit board" cut-board integration. Scope of application: widely used in computer digital, automotive, 3C digital/home appliances and other industries. With high cutting efficiency, strong stability, high safety, and long-term stable use, it is a high-quality, cost-effective online curve dividing machine with a new concept.
Mark positioning correction system
It can make the line change and the jig change more concise and accurate, and can effectively prevent the board from not being placed in place during online production, or mixing materials and resulting in broken products. Since your product may have double-sided processing, the standard MARK point has only one side, so the corrective action is indispensable. The Mark points are usually irregular in shape, irregular in shape; it is easy to report errors or To compensate for offset, based on previous experience, our company has greatly improved the recognition pass rate and compensation accuracy by adopting smart camera upgrade algorithms and special light sources.
Automatic tool change:
During processing, it can be set to detect each step or each piece of cut PCBA detects whether the tool is broken.Prevent the repeated cutting caused by the tool breaking in use in time.
Visual system:
High-pixel color digital camera and large magnification lens can assist program teaching and editing simulation functions. Automatic MARK positioning auxiliary system.

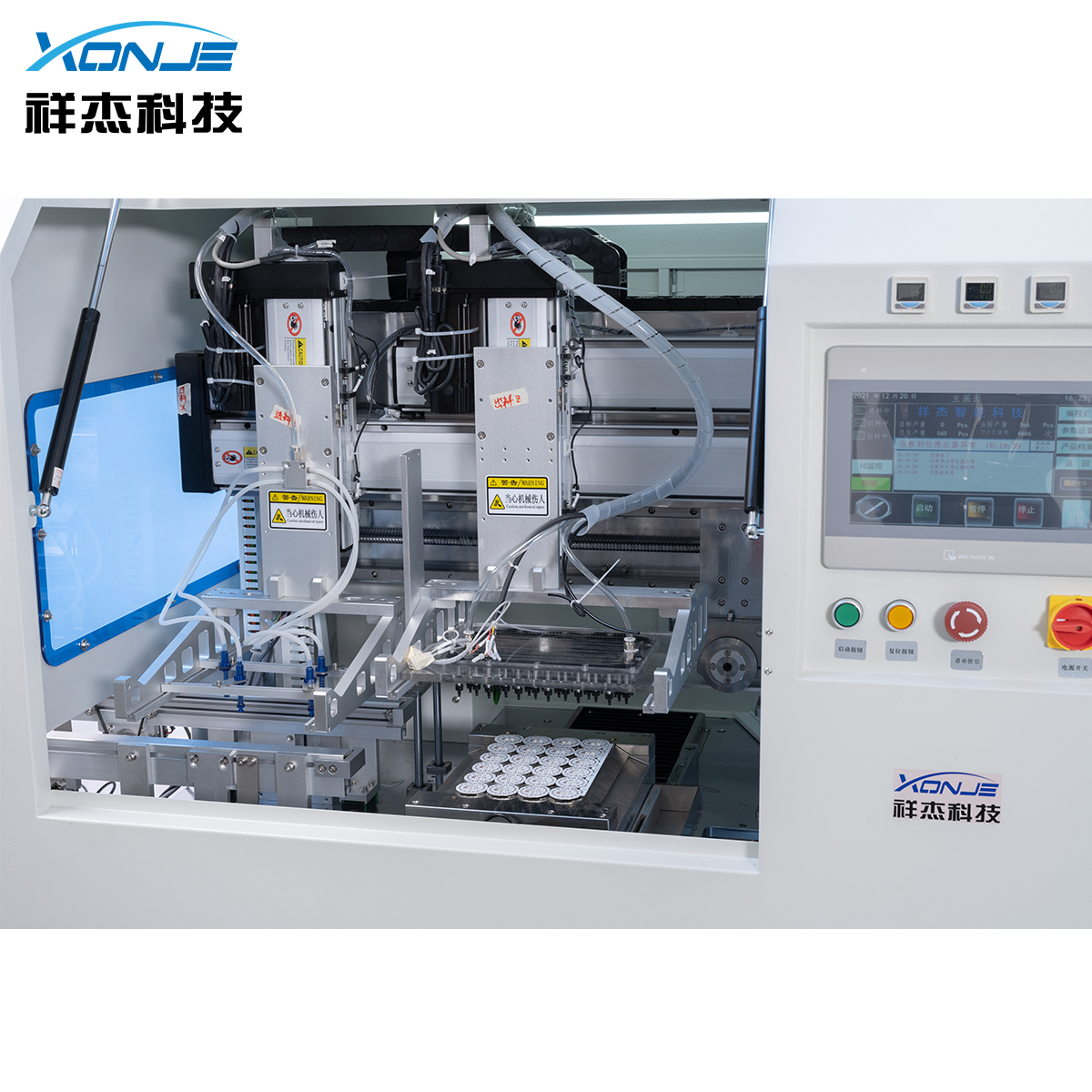

Product transfer platform:

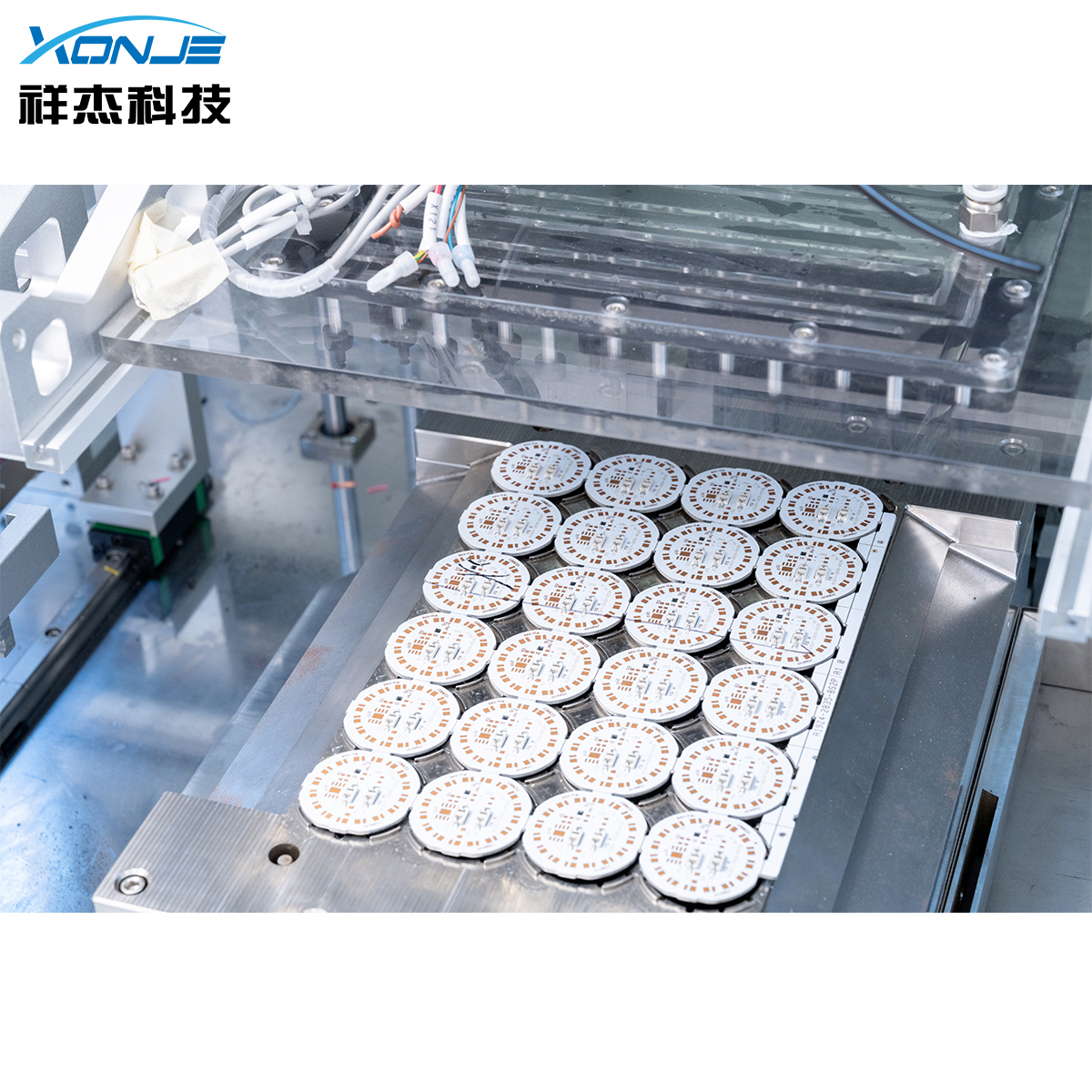

The dual-platform modular servo control system has extremely high stability, and the cutting accuracy can reach ±0.01mm, which can meet various cutting needs and ensure production quality.
Technical parameter
工作模式Operating mode
在线式Online
工作台数量 Number of workbenches
双工作台 Double workbench
切割尺寸Cutting size
300*350mm
轴控制方式 Axis control method
PC工业电脑 PC Industrial Computer
马达驱动方式Motor drive mode
交流无刷伺服马达AC brushless servo motor
人机操作及数据储存 Human-computer operation and data storage
PC系统 PC system
切割速度(可调)Cutting speed (adjustable)
0~100mm/s
主轴转速Spindle speed
20000-60000rpm
机台重复精度 Machine repeatability
±0.02mm
切割精度 Cutting accuracy
±0.02mm
PCB最大厚度 PCB maximum thickness
3.0mm
主机电压 Equipment voltage
220V 50HZ 1P
主机功率 Equipment power
5 KVA
集尘方式 Dust collection method
下集尘 Lower dust collection
集尘机电压 Dust collector voltage
380V 50HZ 3P
工作气压 Working pressure
0.4-0.6mpa
机台尺寸Machine size
L1800*W1500*H2200mm
重量Weight
865kg
