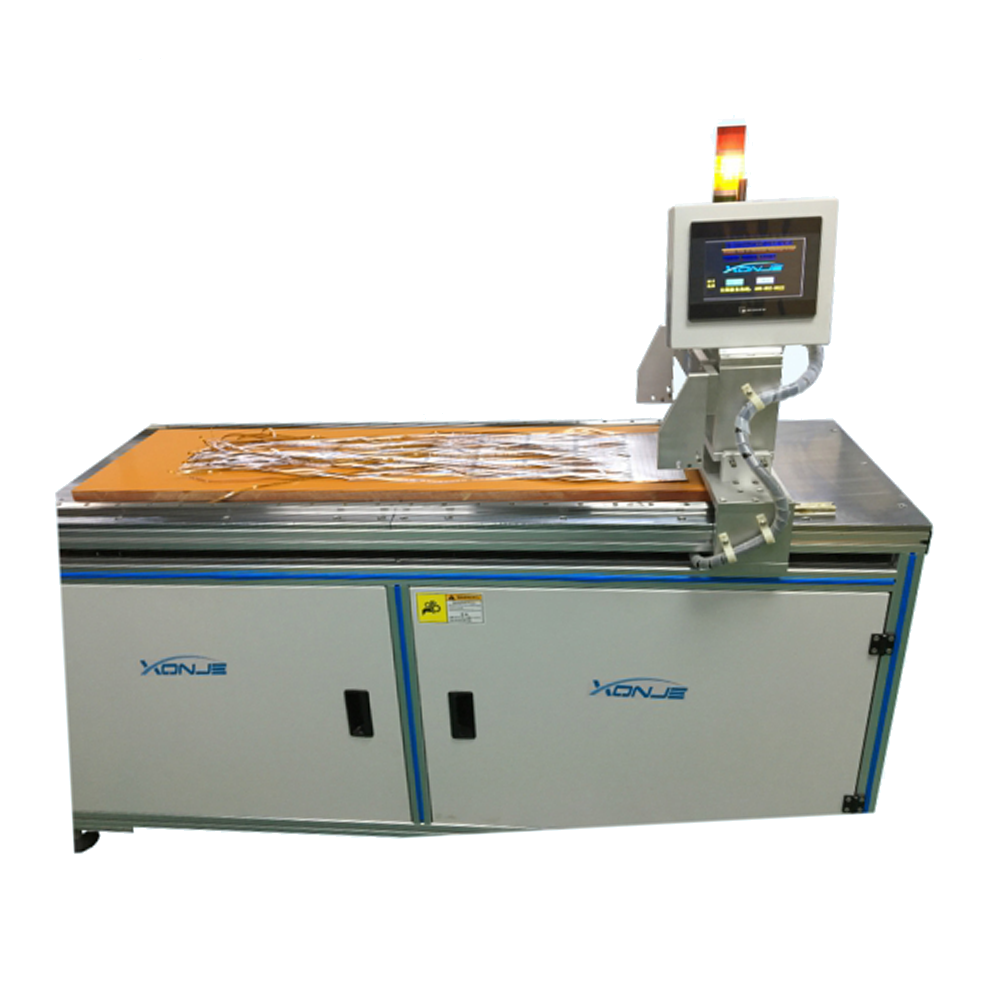

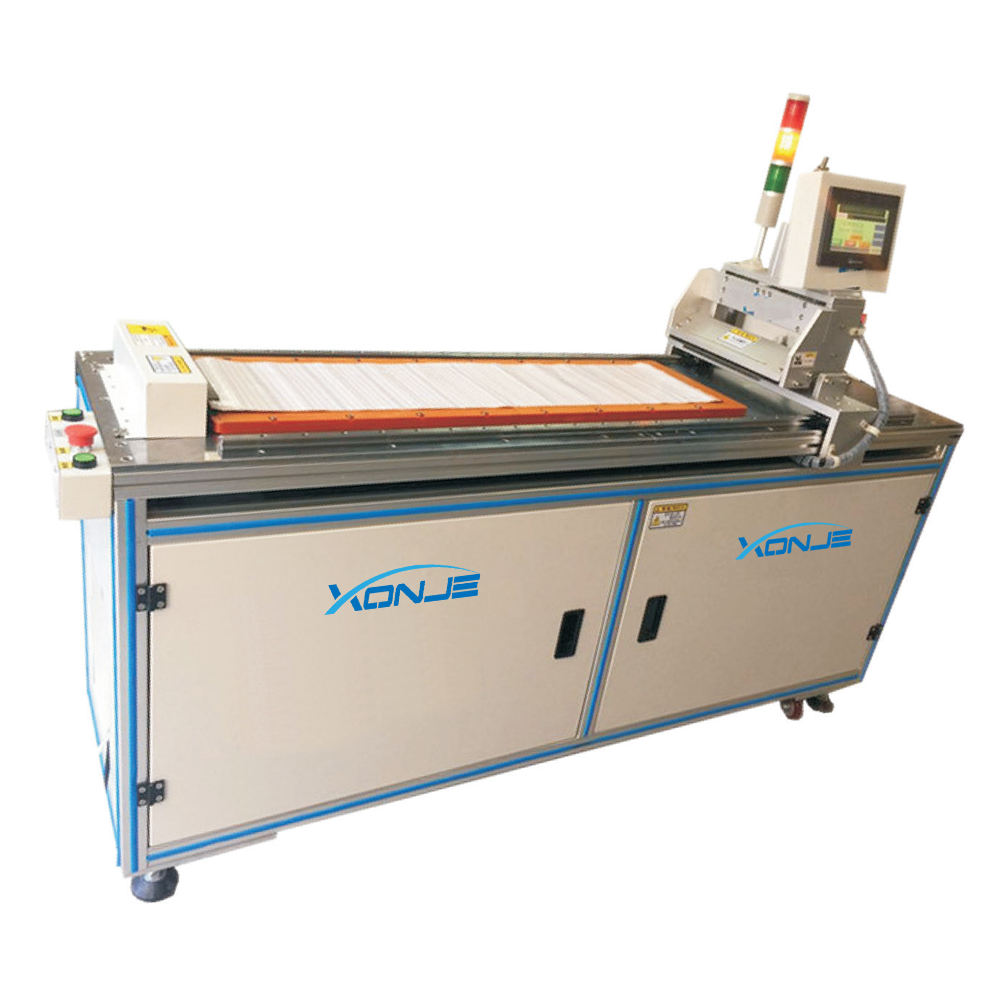

Features
1. Using touch screen operation, PLC control, precision guide and stepping motor drive. A whole piece of FPC lamp strips can be divided automatically, which is easy to operate and easy to use, with high efficiency.
2. Adopting the knife-moving split-board mode of the upper knife action, the stress is small, and it is very good to ensure that the FPC circuit board will not produce various hidden injuries during the splitting process.
3. The touch screen display has an automatic counting function, and the output can be displayed intuitively.
4. The cutting tool is made of high-quality high-speed steel imported from Germany, which has the highest durability in the market after testing.
5. The operation is simple, ordinary employees can operate on the machine with simple guidance, and can realize automatic production according to the requirements of the production line.
6. The light strip can be slit at one time, and the slitting time of the 1200mm long light board is within 10 seconds.
7. Number of slats per split: 1-54 blades; adjustment method: separate section; minimum splitting width 2MM, working mode: soft board is fixed with positioning holes,slitting with blade.
8. Safety electric eye protection to ensure safe production.
Technical parameter
|
工作电压 working voltage |
220VAC |
|
工作面积 Working area |
1200x300MM |
|
切割速度 Cutting speed |
0-300MM/second |
|
机器重量 Machine weight |
280kg |
|
机器尺寸 Machine size |
1850x500x1500mm |
|
最高效率 Maximum efficiency |
1000pcs/H |
